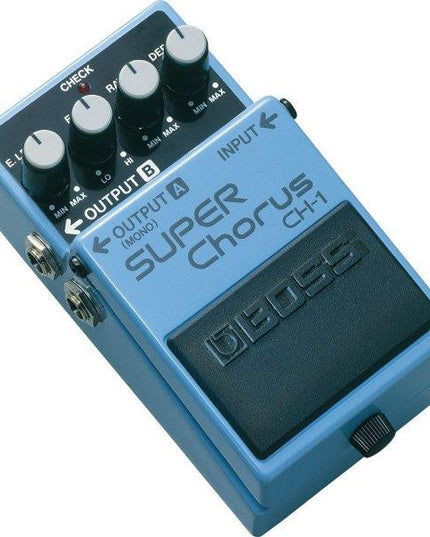

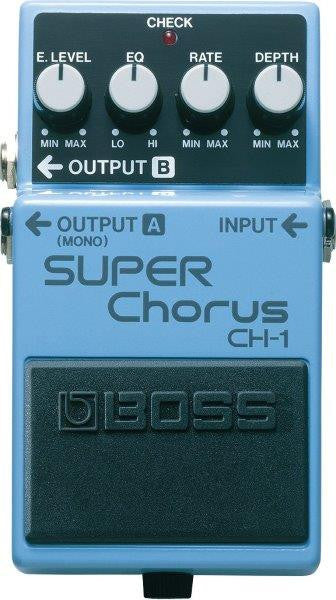

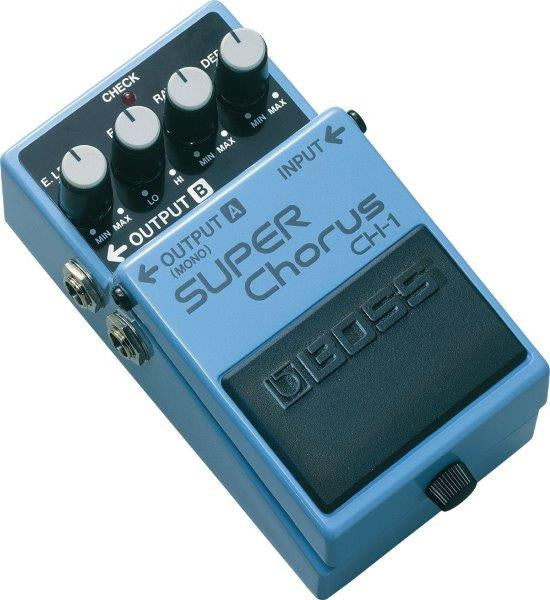

Boss CH-1 Super Chorus
Boss CH-1 Super Chorus
Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards Effect Level, EQ, Rate and Depth knobs allow... Read more
- Free pickup in our shop(s)
$131.99
SKU: CH1
Barcode: 761294015193
Size chart
Product Description
- Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards
- Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound
- Features Mono input and Stereo outputs for connection to dual amps
- BOSS five-year warranty
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- DEPTH knob
RATE knob
EQ knob
E.LEVEL knob
Pedal switch - Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT A/B jack: 1/4-inch phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 55 mA
- Expected battery life under continuous use
- Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 420 g
15 oz - * 0 dBu = 0.775 Vrms
- * The specifications are subject to change without notice.
