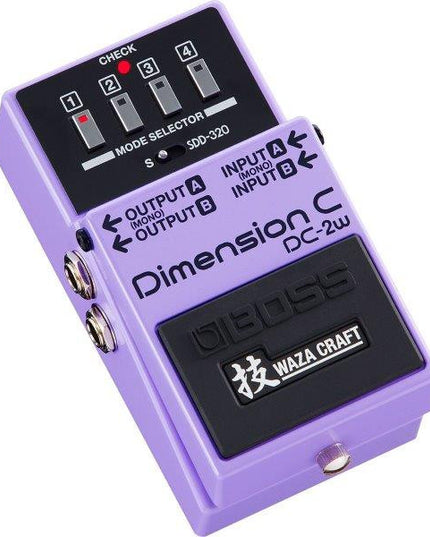

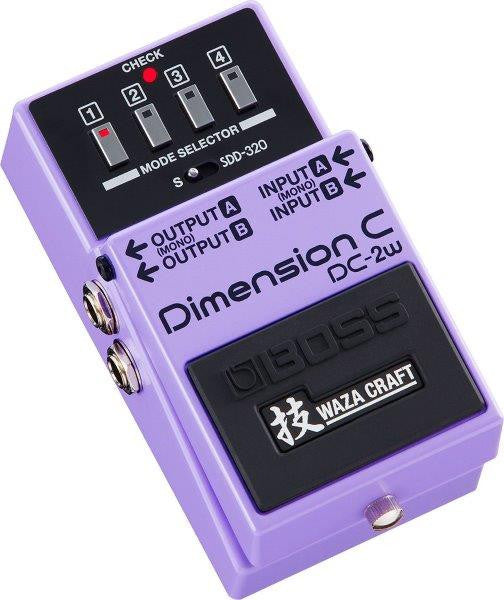

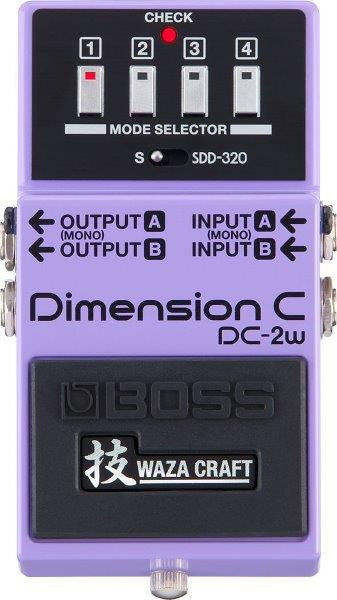

Name: Boss DC-2W Dimension C
Brand: Boss
SKU: DC2W
Price: 219.99 USD
Availability: InStock

Product form

Premium Waza Craft pedal with all-analog audio circuitry Standard mode provides the sound of the original DC-2 Dimension C pedal... Read more

$219.99

SKU: DC2W
Barcode: 761294513521

Premium Waza Craft pedal with all-analog audio circuitry
Standard mode provides the sound of the original DC-2 Dimension C pedal
SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D, a legendary studio rack effect heard on countless hit records
Iconic four-button preset interface, updated with reliable electronic switches and LED status indicators
Four main sounds in each mode, plus six variations by pressing two switches together (20 total sounds available)
Premium buffer and enhanced bypass circuitry
Versatile I/O for integrating with any mono or stereo application, from guitar and bass pedalboards to keyboards and studio mixing
Made in Japan
BOSS five-year warranty

Specifications
Modes: S (Standard)
SDD-320
Nominal Input Level: -20 dBu
Input Impedance: 2.2 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch
S/SDD-320 switch
MODE SELECTOR [1]--[4] buttons
Indicators: CHECK indicator (Serves also as battery check indicator)
MODE SELECTOR [1]--[4] indicators
Connectors: INPUT A (MONO) jack: 1/4-inch phone type
INPUT B jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 65 mA
Expected battery life under continuous use: Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately): AC adaptor: PSA series
Size and Weight
Width: 73 mm
2-7/8 inches
Depth: 129 mm
5-1/8 inches
Height: 59 mm
2-3/8 inches
Weight (including battery): 450 g
1 lb
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
