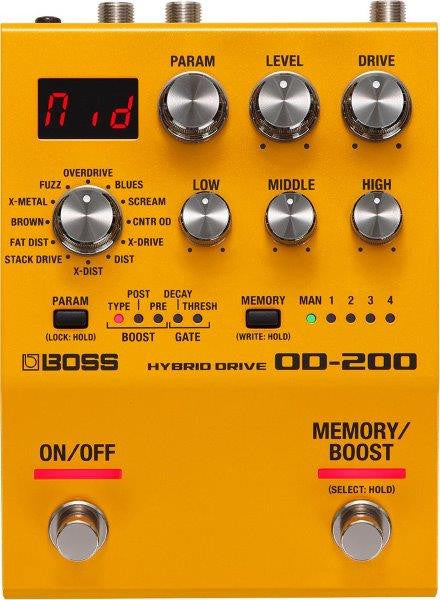

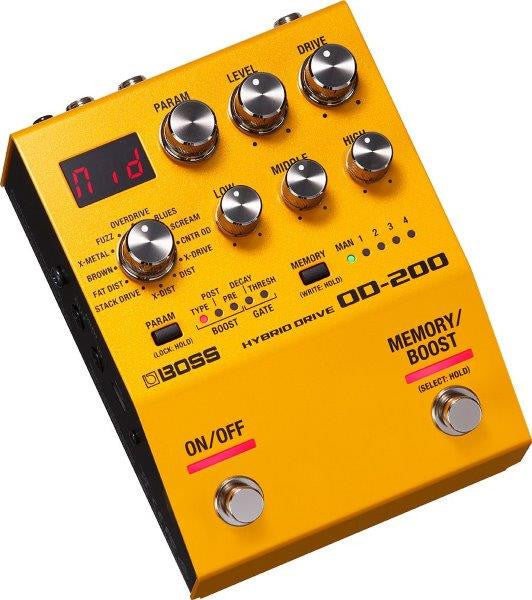

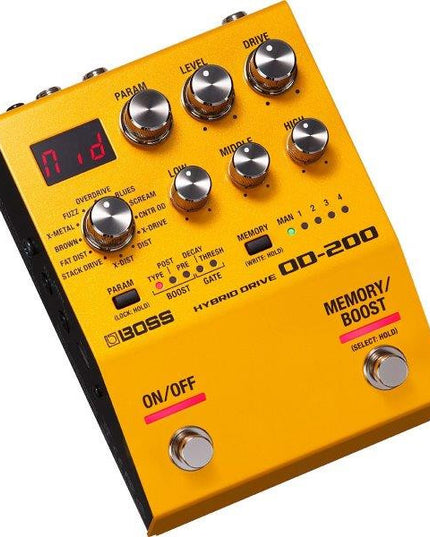

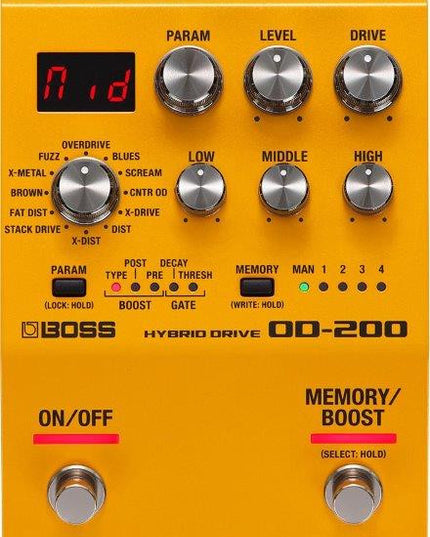

Name: Boss OD-200 Hybrid Drive
Brand: Boss
SKU: OD200
Price: 249.99 USD
Availability: InStock

Boss OD-200 Hybrid Drive

Product form

Boss

Boss OD-200 Hybrid Drive

Advanced hybrid design with analog and digital circuitry provides a huge range of drive tones from classic to modern Twelve... Read more

Free pickup in our shop(s)

$249.99

SKU: OD200
Barcode: 761294514634

Product Description

Advanced hybrid design with analog and digital circuitry provides a huge range of drive tones from classic to modern
Twelve primary drive modes plus 15 boost types with independent pre/post gain controls
Selectable series or parallel boost structures for unlimited gain shaping
Advanced gate section for eliminating noise and tightening high-gain tones
Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
Access 128 user setups from the panel or MIDI program change
Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
Panel Lock function disables controls to prevent unwanted changes
Customizable multi-function footswitches for bypass, boost, memory selection, and more
Support for expanded control via external footswitches, an expression pedal, or MIDI
Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
Micro USB jack for firmware updates
Runs on PSA-series AC adaptor or three AA-size batteries

Specifications
Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Drive Circuit: Analog + Digital
Modes: 12 modes
OVERDRIVE, BLUES, SCREAM, CNTR OD, X-DRIVE, DIST, X-DIST, STACK DRIVE, FAT DIST, BROWN, X-METAL, FUZZ
Memory: 127 + Manual
Nominal Input Level: INPUT: -10 dBu
Maximum Input Level: INPUT: +7 dBu
Input Impedance: INPUT: 1 M ohm
Nominal Output Level: OUTPUT: -10 dBu
Maximum Output Level: OUTPUT: +7 dBu (Load Impedance: 220 k ohms or greater)
Output Impedance: OUTPUT: 1 k ohms
Recommended Load Impedance: OUTPUT: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY/BOOST switch
MODE knob, DRIVE knob, LEVEL knob, PARAM knob, LOW knob, MIDDLE knob, HIGH knob
PARAM button, MEMORY button
Display: 7 segments, 3 characters (LED)
Indicator: PARAM indicator, MEMORY (MAN, 1--4) indicators
Connectors: INPUT jack, OUTPUT jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw: 220 mA
Expected Battery Life Under Continuous Use: Alkaline: Approx. 6 Hours
* These figures will vary depending on the actual conditions of use.
Accessories: Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4
Options (sold separately): AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
Size and Weight
Width: 101 mm
4 inches
Depth: 138 mm
5-7/16 inches
Height: 63 mm
2-1/2 inches
Height (including rubber foot): 65 mm
2-9/16 inches
Weight: 600 g
1 lb 6 oz
Weight (including battery): 670 g
1 lb 8 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
