Product Description
With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen's historic and authentic style in your hands ... These are high powered, high-performance machines as kickbutt to look at as they are to play.

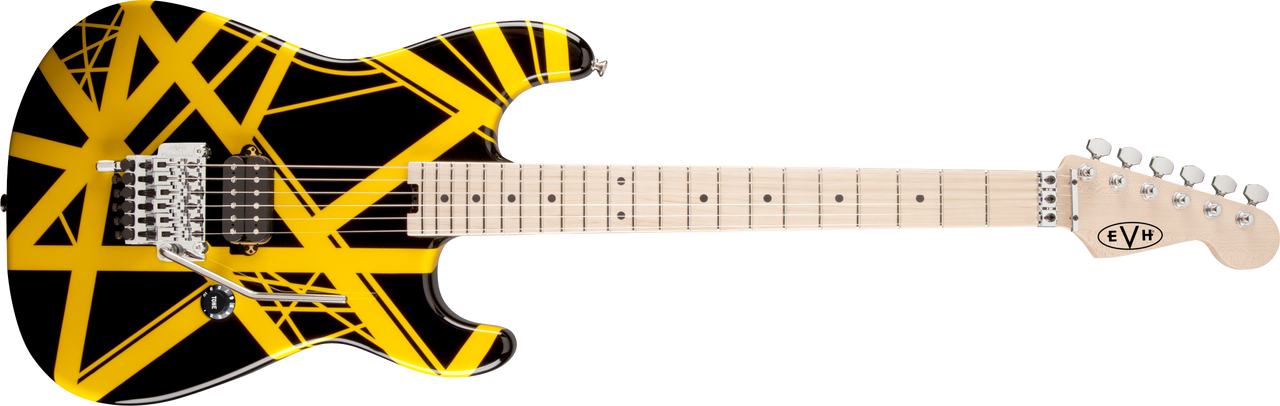

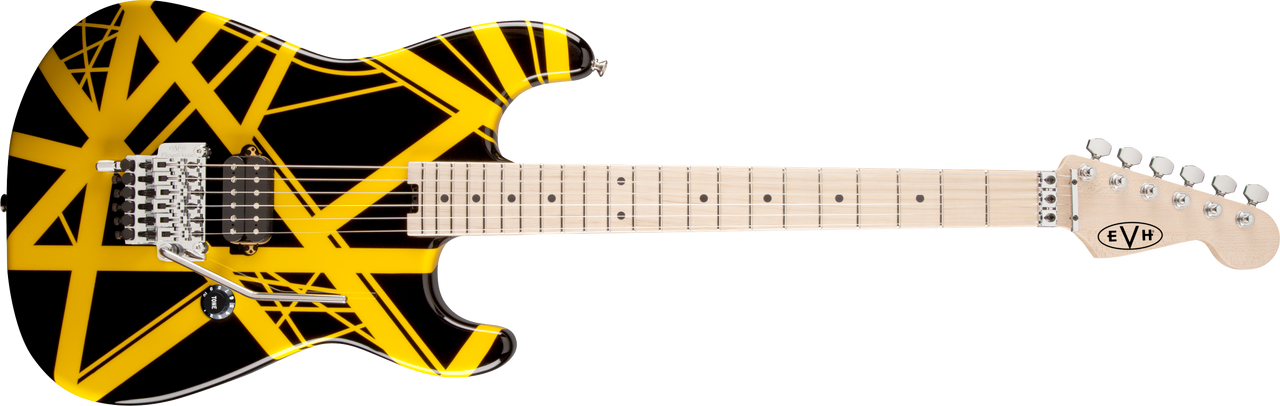

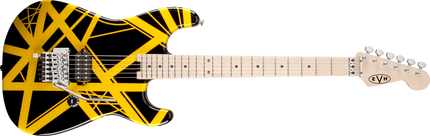

The Striped Series guitar features a basswood Stratocaster-style body decked out in Eddie's famed striped graphics - Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.
These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12"-16" maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.
Powered by a single ferocious direct-mount Wolfgang humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled "tone") that houses a 500K EVH Bourns low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose locking nut, EVH-branded Floyd Rose locking tremolo with EVH D-Tuna, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender Strat headstock. The White with Black Stripes model also features a top-mount output jack.
- Body: Basswood
- Body Finish: Gloss Urethane
- Body Shape: Other
- Control Knobs: Black Stratocaster-Style Skirt (Labeled "Tone")
- Fingerboard: Maple
- Hardware Finish: Chrome
- Position Inlays: Black Dot
- Neck Finish: Hand-Rubbed Satin Urethane
- Neck Construction: Bolt-On with Graphite Reinforcement
- Neck Shape: EVH Modified "C" Backshape
- Headstock: Licensed Fender Stratocaster
- Orientation: Right-Hand
- Configuration: H
- Scale Length: 25.5" (64.77 cm)
- Number of Frets: 22
- Fret Size: Jumbo
- String Nut: Floyd Rose R3 Locking
- Nut Width: 1.6875" (42.86 mm)
- Truss Rod Wrench: 2.5 mm Hex
- Bridge Pickup: EVH Wolfgang Humbucking
- Controls: Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit
- Pickup Switching: None
- Pickup Configuration: H
- Bridge: EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
- Tuning Machines: EVH-Branded Gotoh
- Strings: EVH Nickel Plated Steel (.009-.042 Gauges)
- Included Accessories: Tremolo Arm, Hex Keys & User Manual
- Case/Gig Bag: Optional EVH Striped Hardshell (p/n 022-6100-506); Optional EVH Black Gig Bag (p/n 022-1512-006)
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Refinement Fingerboard Radius: Compound
- Neck Material: Quartersawn Maple
- Refinement Neck Material: Maple
- Refinement Neck Shape: C Shape
- Nut Material: Floyd Rose R3 Locking
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret
